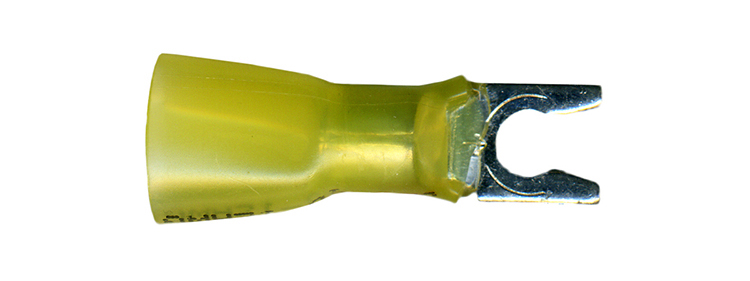

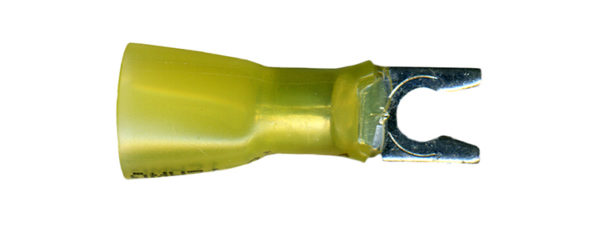

Krimpa-Seal Flange Spade, 12-10 AWG Spring Spade #8 Stud
KS310S-08
| Trade Name | Krimpa-Seal |
|---|---|
| Connection Type | Crimp |
| Insulation Material(s) | Heat Shrink Polyolefin |
| Insulation Color | Yellow |
| AWG | 44905 |
| Connector | Spring Spade |
| Stud Size | #8 |
| Mating Size | n/a |
| Barrel Seam | Brazed |
| Crimp Connector Material | Copper |
| Crimp Connector Plating | Tin |
| Tubing Shrink Temperature | 135°C (275°F) |
| Operating Temperature | -55°C to 110°C (-67°F to 230°F) |
| UL Listed/ Recognized | N |
| Approx Weight/Ea (lb) | 0.0037 |
